MEDRAD® Centargo Powered by Cortenic™ CoNNECTIVITY
Streamline Workflow, Redirect Time to Patient Care
The MEDRAD® Centargo injector, powered by Cortenic™ Connectivity, is a multi-patient connected CT solution for high-throughput suites, optimizing workflow to redirect time to patient care. Learn more about our Centargo Solution Plans below.
Watch to learn more
WITH EFFICIENCY.
Automated Features for Streamlined Care
Intuitive daily set-up and quick change time between patient scans streamline workflow.

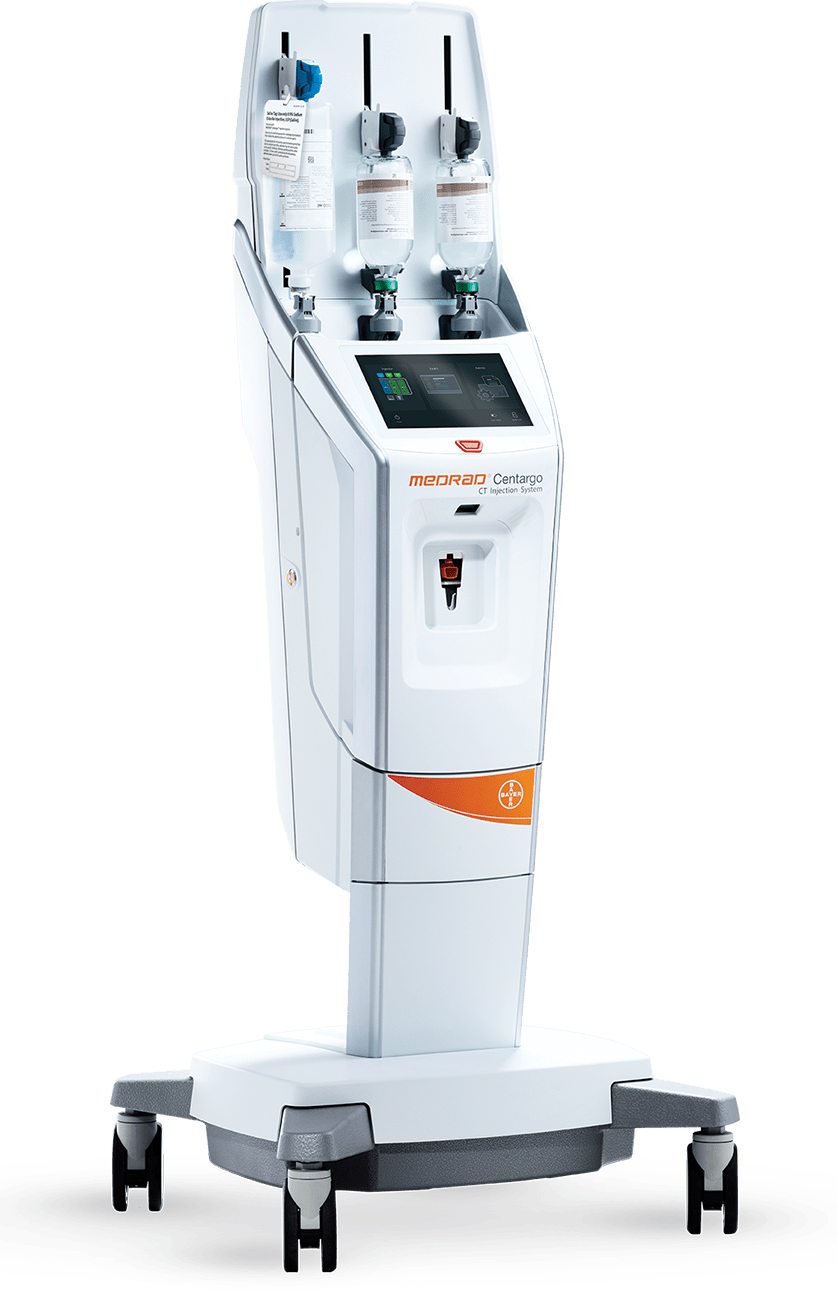

Cordless Mobility

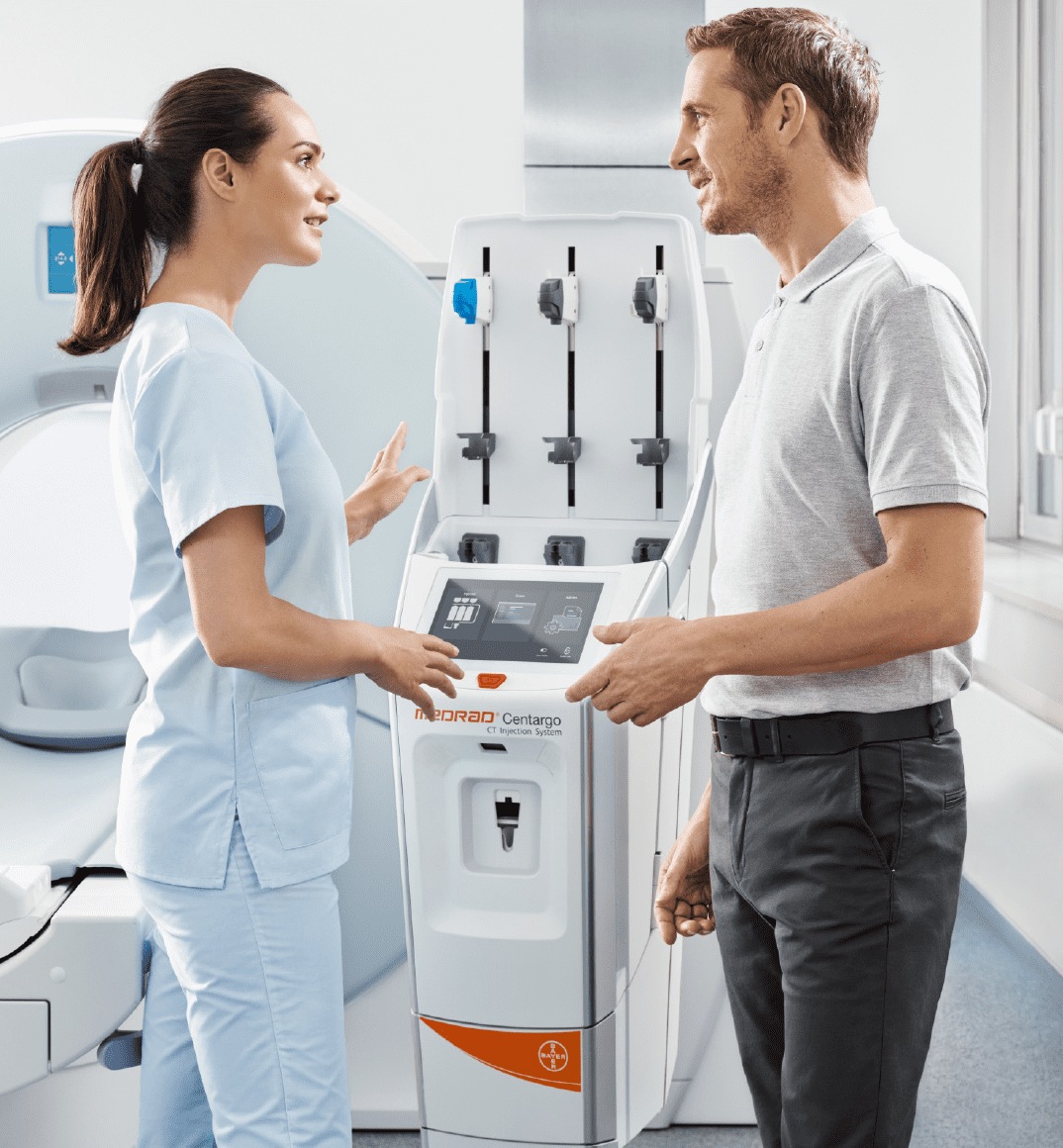

Pedestal configuration is battery powered and Wi-Fi enabled.

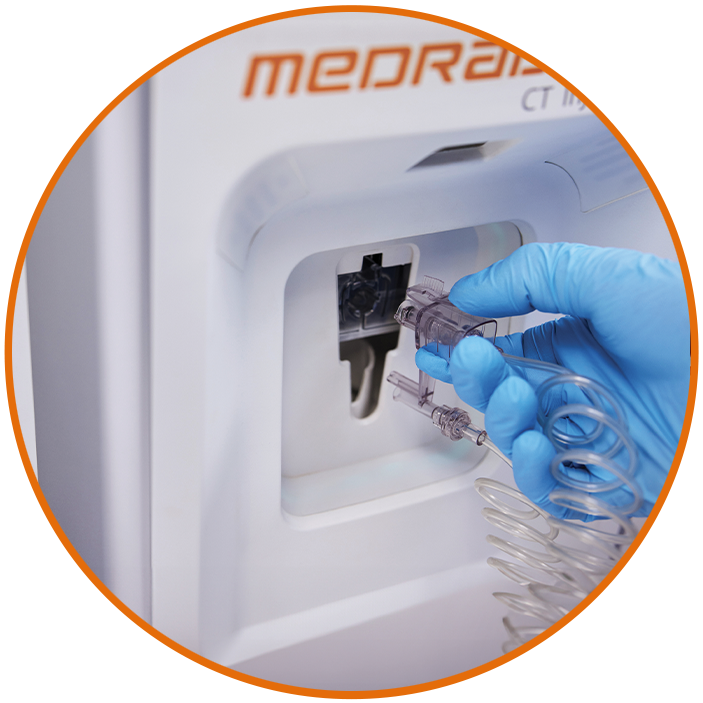

Under 20 Seconds

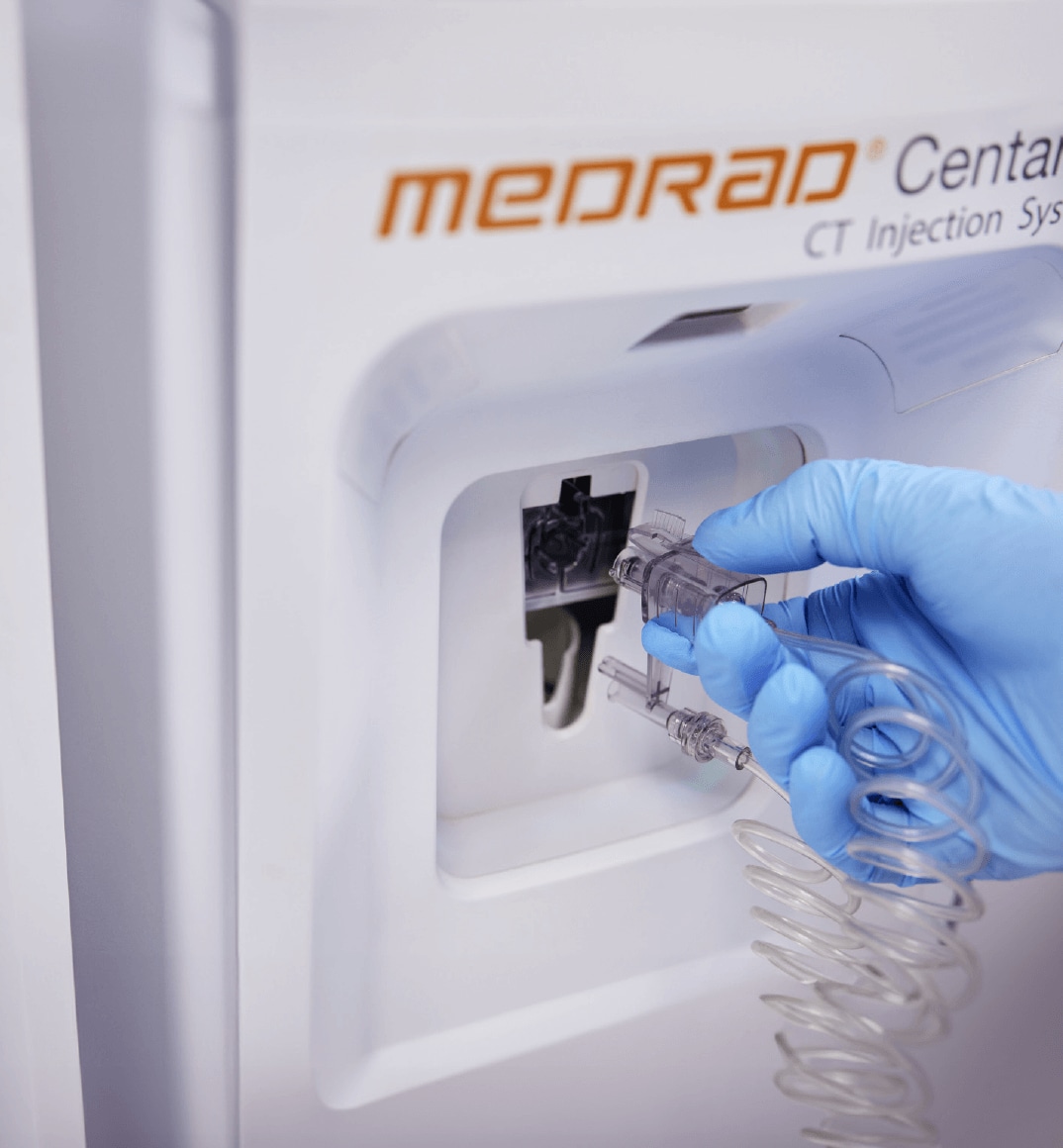

Simple, snap-in patient line auto primes and is ready for the next patient in under 20 seconds.

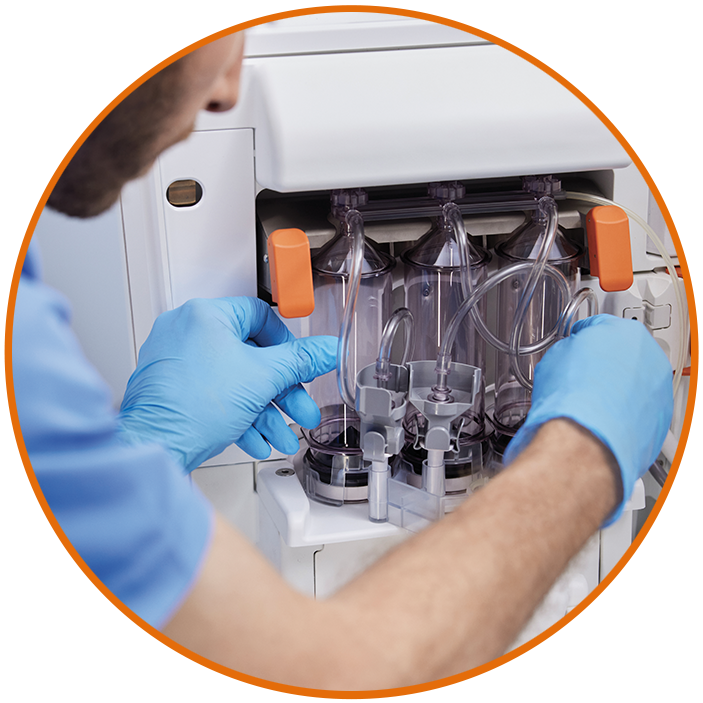

Under 2 Minutes
Multi-patient set-up process can be completed in under 2 minutes with the pre-assembled Day Set.
WITH CONFIDENCE.
Safety Focused and Efficiency Driven
Flexible contrast options and unique features help you confidently manage your tasks.

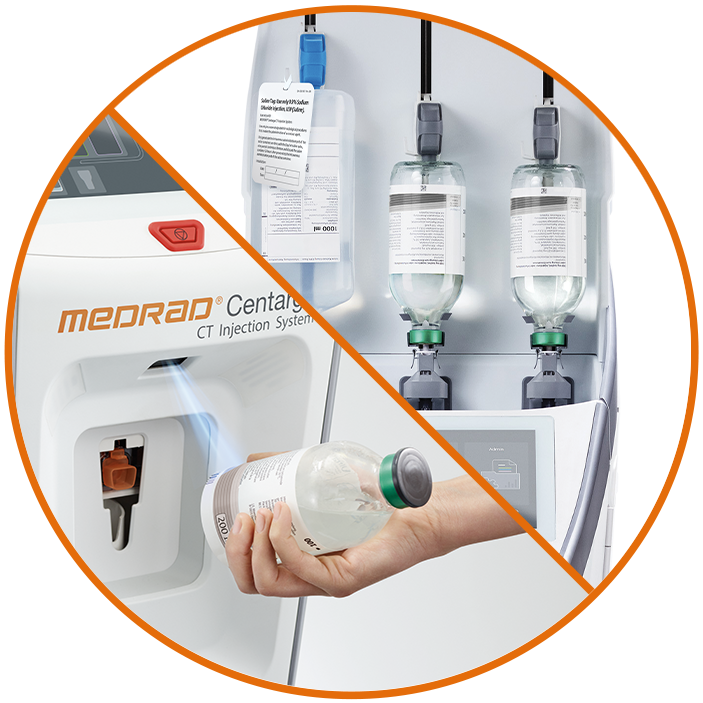

Contrast Versatility & Data Capture

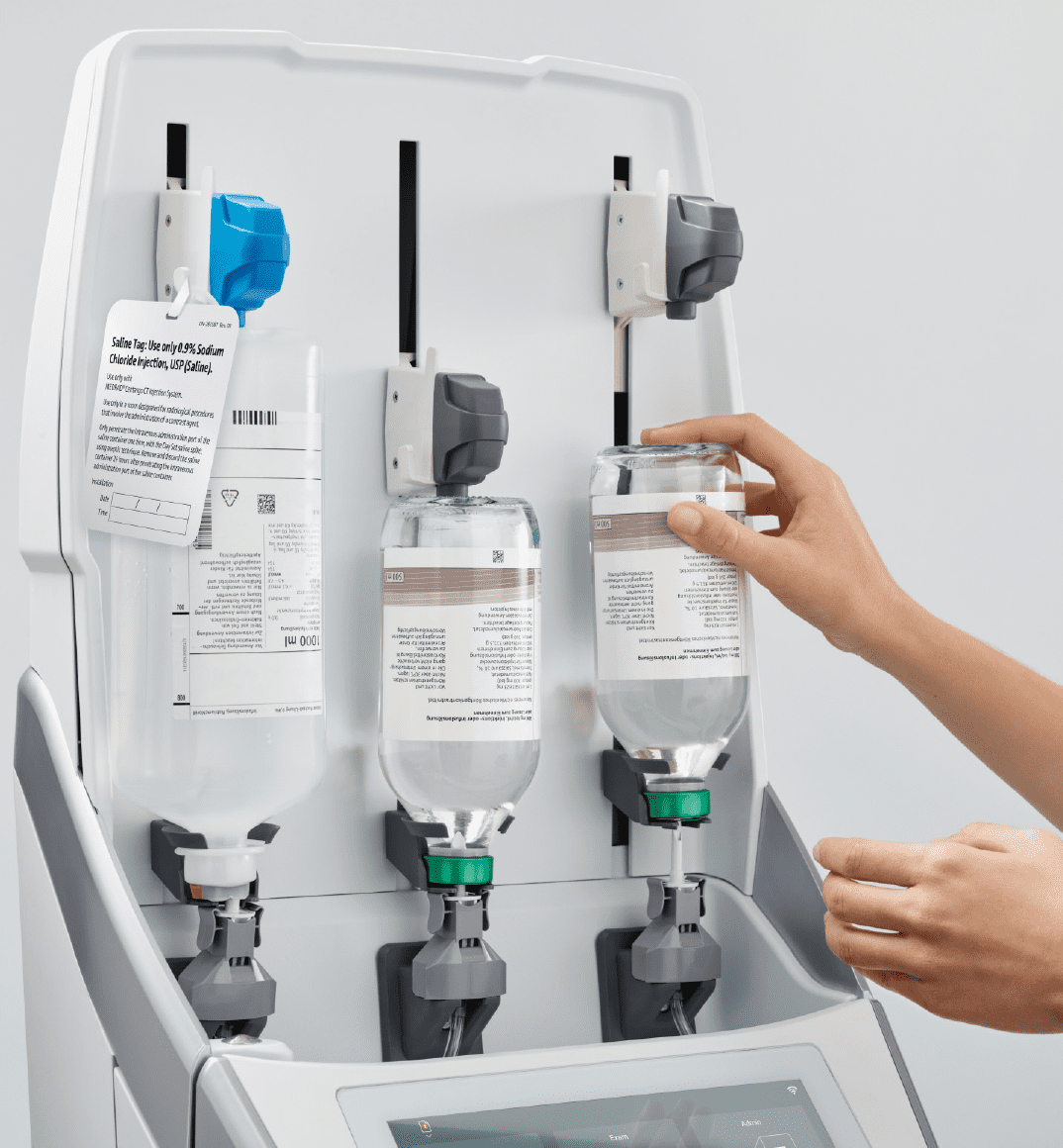

Flexibility to use ULTRAVIST® (Iopromide), ISOVUE® (Iopamidol), OPTIRAY® (Ioversol), or OMNIPAQUE™ (Iohexol) contrast in an Imaging Bulk Package (IBP) presentation.* Integrated barcode reader automatically captures and populates important contrast details.

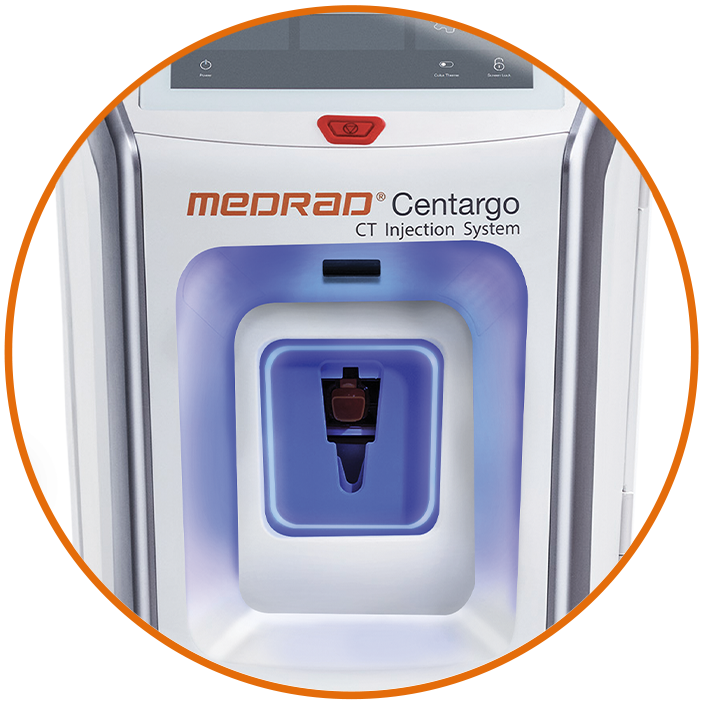

Visual Indicators
Lighted, visual indicators inform workflow steps to reduce uncertainty.

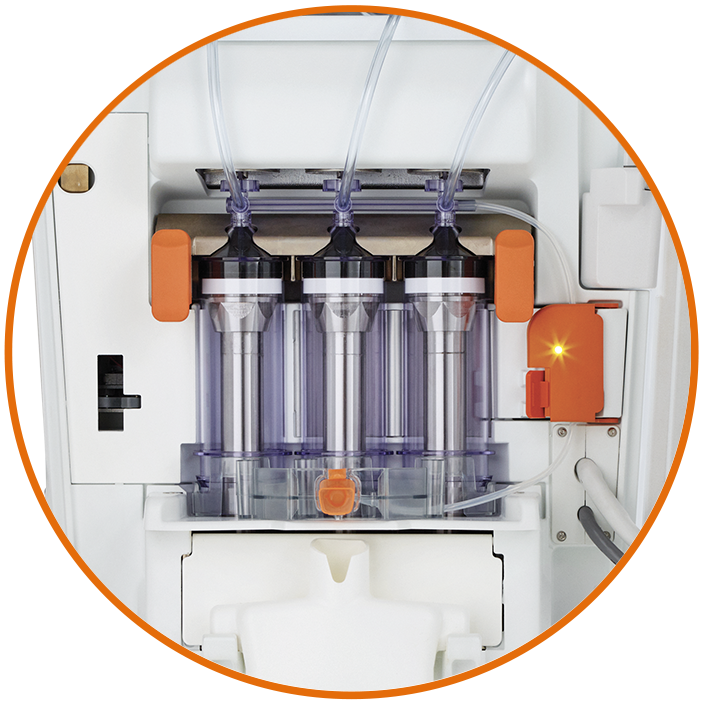

Air Detection and Removal
A multi-layer air detection and removal process is designed to reduce disruptions and repeat scans associated with microbubbles.1
*When loading both contrast agent reservoirs, the contrast agents must have the same active pharmaceutical ingredient (API).
WITH CARE.
Do Less, Care More
Thoughtfully designed to make a greater impact on patients and a smaller impact on the planet.

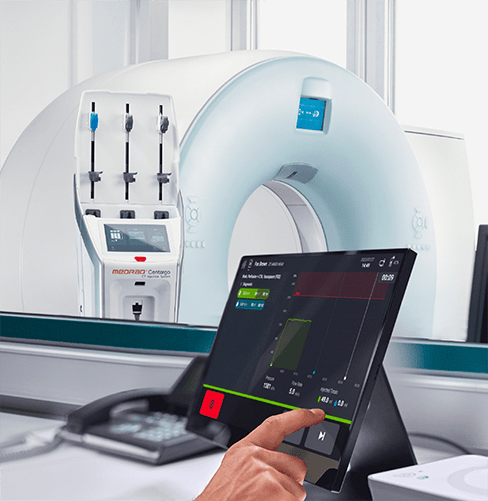

Complete Range of Injection Controls

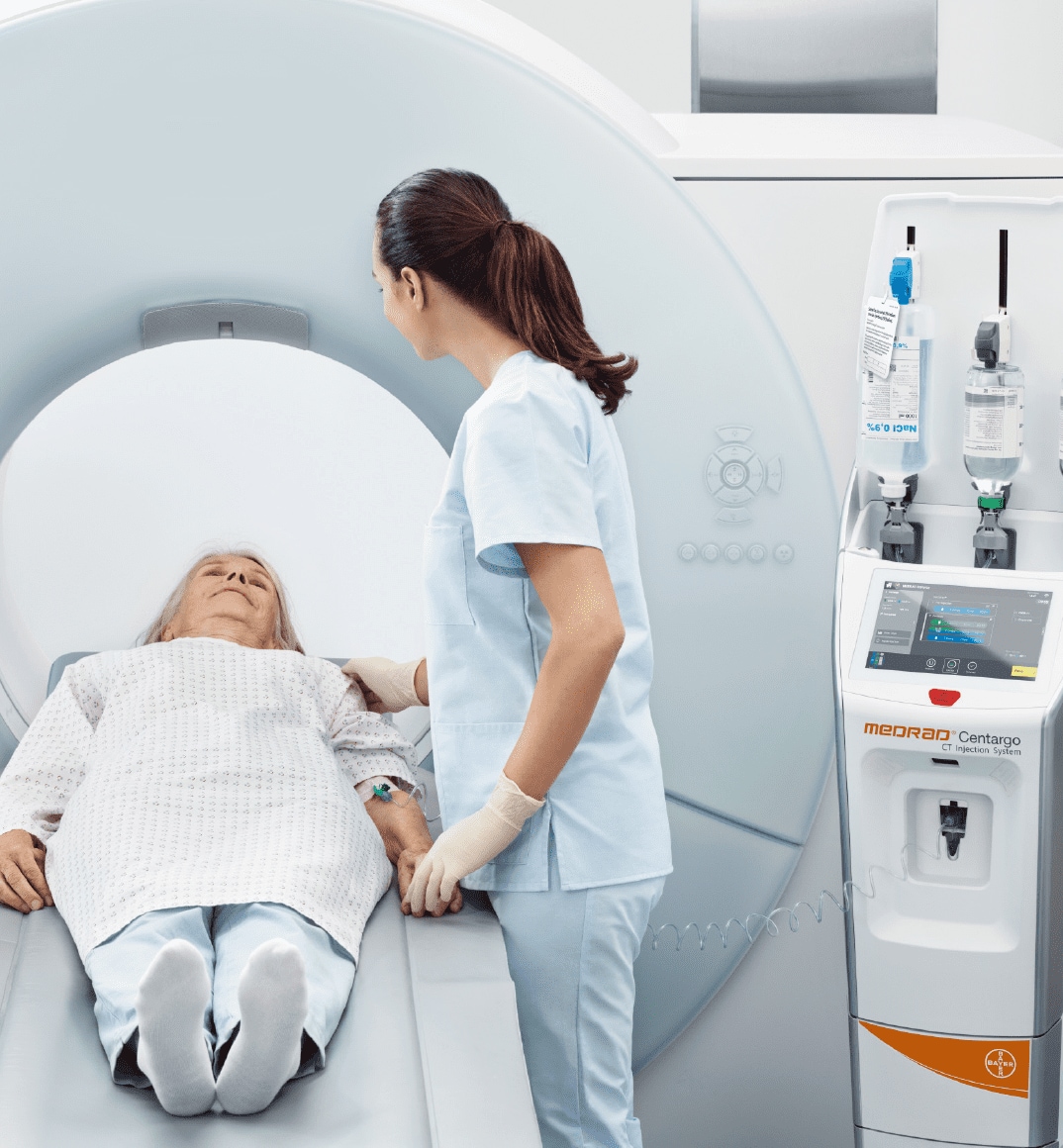

Remain at the patient’s side with the touch screen in the scan room.
DualFlow Technology
Inject contrast and saline simultaneously in user-selected ratios, allowing for more uniform attenuation in cardiac studies.2
Fluid Optimization
Multi-dose workflows and Skip to Next Phase technology may reduce per-procedure costs and fluid waste, only using the contrast amount that each patient needs.
Packaging Design
Centargo's Day Set package is an innovative, award-winning sustainable design, achieving an 80% reduction in plastic waste.*,3,4
Remote Support and Maintenance
Our remote support platform offers remote diagnostics and technical support, resulting in higher remote resolution rates for connected systems, minimizing the need for travel time onsite.5
*Reductions stated are in comparison to a prior version of packaging design released in 2020 for global launches. This prior packaging design was not made available in the U.S.
WITH CONNECTIVITY.
Optimize Productivity and Performance
Powered by Cortenic™ Connectivity, the MEDRAD® Centargo injector is a comprehensive solution for workflow efficiency, unlocking the full potential of the connected suite with integrated software, services, education and data.
-

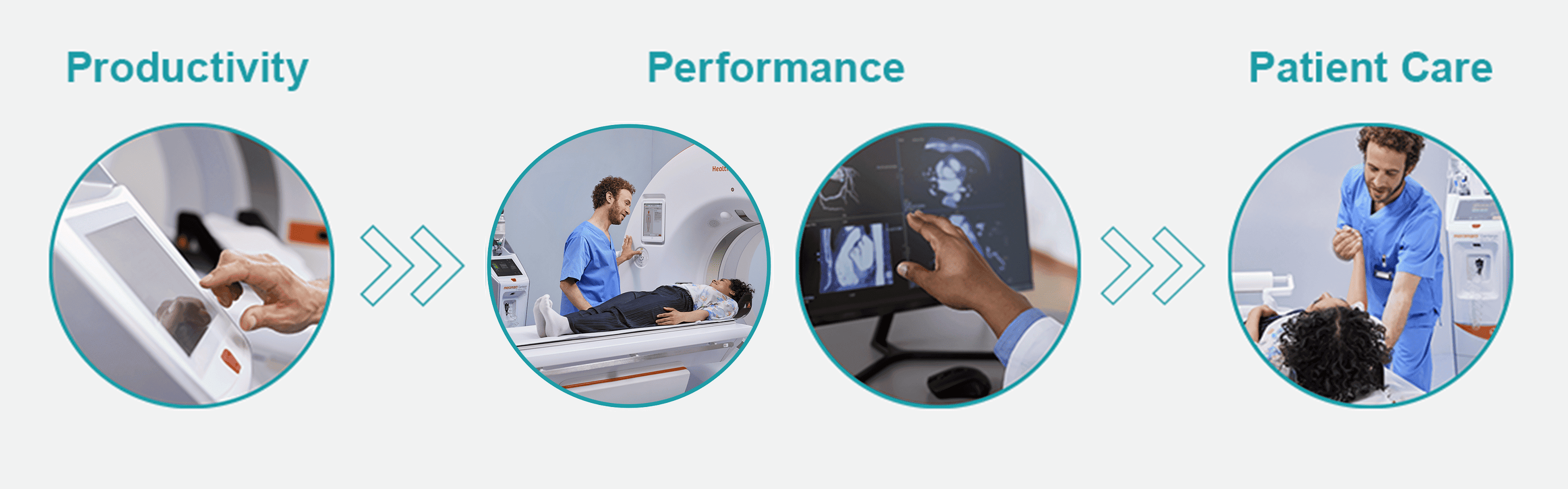

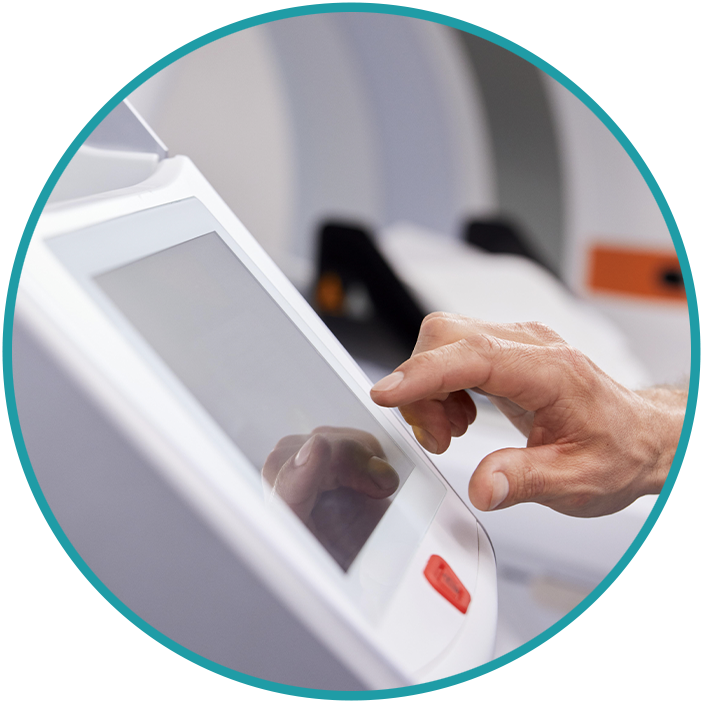

Productivity
Preparing the Patient
- Integrated barcode reader captures and populates contrast details
- Modality Worklist provides patient and study information
- Personalized protocols and weight-based dosing optimize contrast delivery to the patient
-
Performance

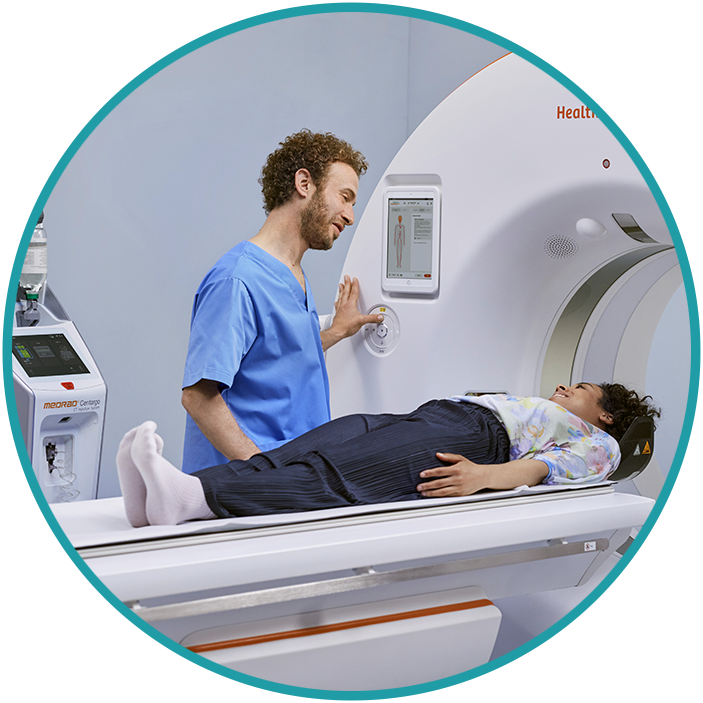

Performing the Scan
- Scanner interface facilitates protocol exchange and scan time synchronization with the injector
- Workflow solutions software enables automated documentation of patient, contrast and injection information
-
Performance
Reading the Scan
- Through integrated interfaces, information is automatically sent to multiple destinations, including PACS, RIS and Speech Recognition, for review and interpretation
-
Patient Care
Enhancing the Experience
- Workflow standardization and automation add up to a better experience for your department and allow for more time to focus on patient care
WITH SOLUTION PLANS POWERED BY CORTENIC™ CONNECTIVITY.
Optimize the Capabilities of Your Connected MEDRAD® Centargo
Our solution plans combine the latest injector technology, software and services to activate holistic, scalable solutions and new levels of efficiency. Elevating the features and benefits of your Centargo injector, these plans are designed to meet your needs by bringing the best of Bayer’s technical and clinical knowledge to your suite.
Discover which solution plan best meets your needs.
Specifications
Click below to find the information you need on the MEDRAD® Centargo CT Injection System.
| Description | Specification | ||||

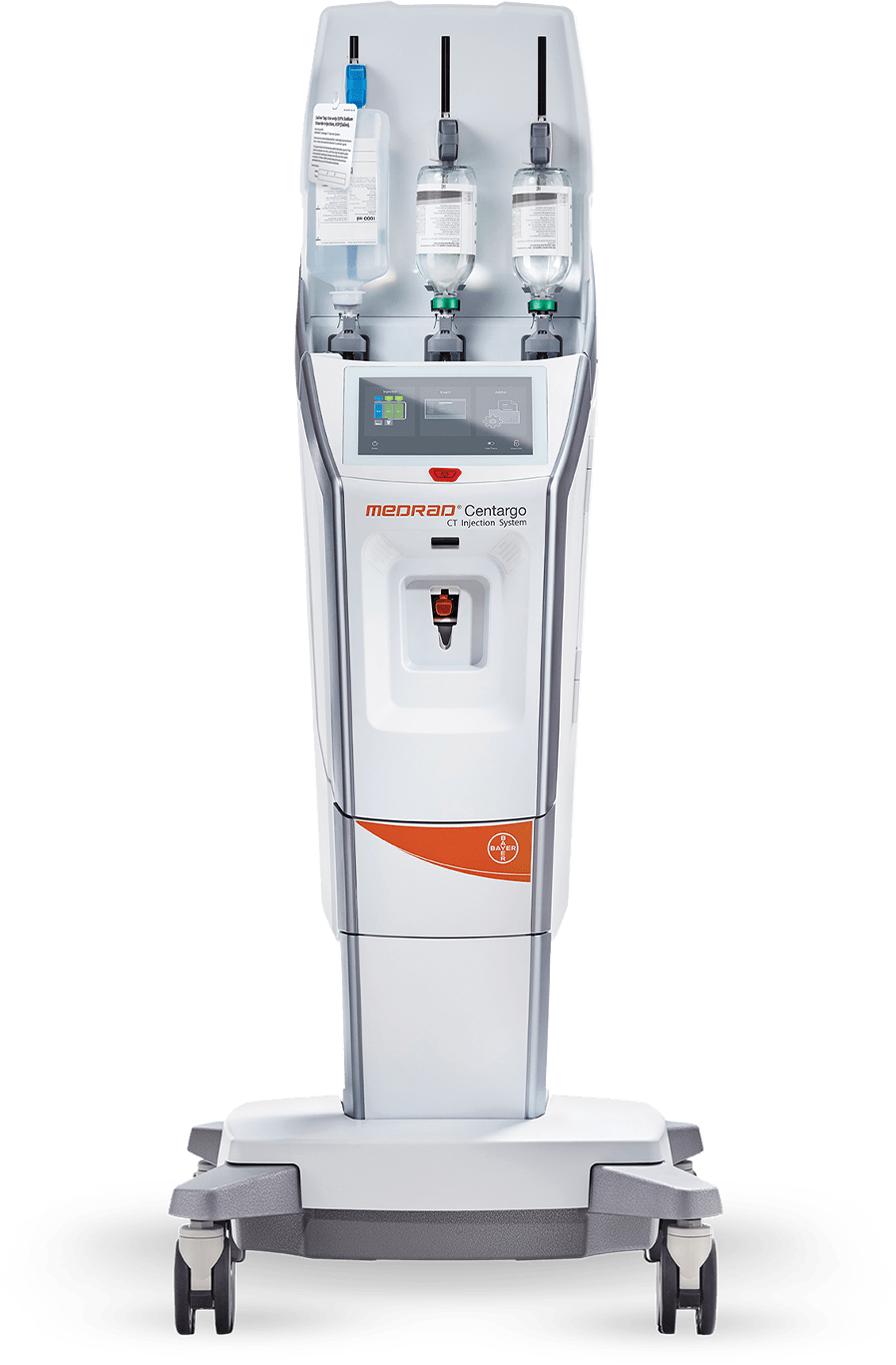

| Injector (Pedestal) | Dimensions (WxDxH) Weight (approximate) | 76.2 x 68.6 x 167.6 cm 77.8 kg (171.5 lbs.) | |||
| Overhead Counterpoise System (OCS) | Dimensions (WxDxH) Weight (approximate)* | 39.2 x 49 x 122.6 cm 112.16 kg (247.1 lbs.) | |||
| Workflow Hub (Control Room Unit) | Touch Screen Display | Dimensions (WxDxH) Weight | 35.7 x 18.9 x 27 cm 3.2 kg (6.61 lbs.) | ||
| Hub | Dimensions (WxDxH) Weight | 21.1 x 7.9 x 13.6 cm 1.2 kg (2.7 lbs.) | |||
*Weight includes: MAVIG Centargo OCS Mounting Plate, ceiling columns, and injector column, upper and lower arms, injector interface bracket, internal cable, and injector system
| Fluid Delivery Method | Piston-based | |
| Fluid Loading | Contrast Media: 200 mL or 500 mL Imaging Bulk Pack presentation (IBP) | Saline: 50 mL-1000 mL |
| Day Set (volume) | Three x 200 mL reservoirs
| |
| Air Detection |
| |
| Battery Performance (Pedestal configuration only) | Up to 16 hours or up to 60 injections | |

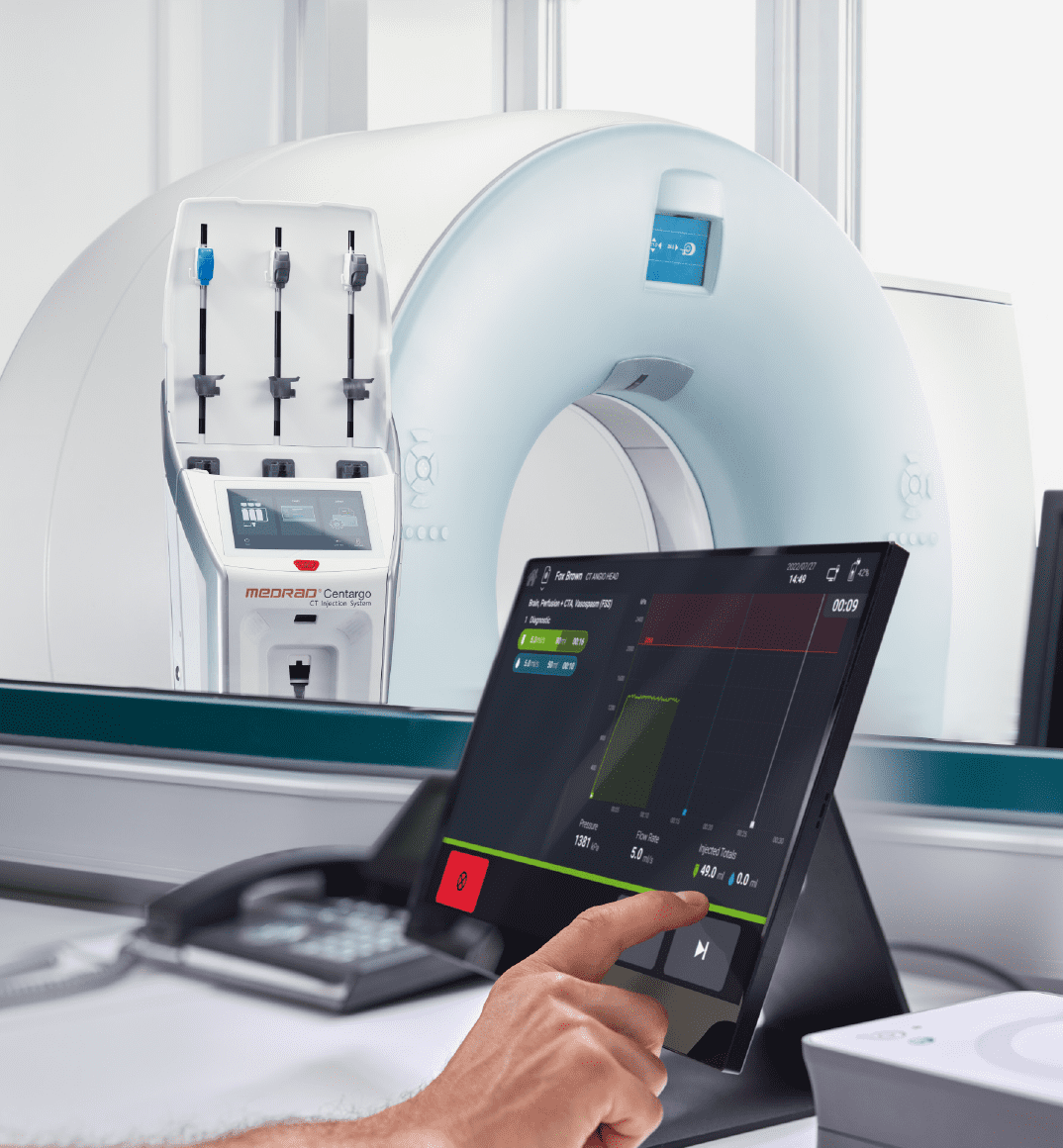

| Displays | Two independent, Wi-Fi enabled, full color, touch screen units with modern graphical user interfaces located in the scan room and the control room | |
| Barcode Reader | Contrast details auto populated to system such as brand, concentration, vial size and use life | |
| Integrated Prime Container (volume) | 680 mL container with volume indicator depicted on dual displays | |
*API= active pharmaceutical ingredient
| Volume Range | 1 mL to 200 mL for contrast and saline phases; 1 mL to 400 mL for DualFlow phases (in 1 mL increments) | |
| Flow Rate Range | 0.1 to 10 mL/sec in 0.1 mL/sec increments | |
| DualFlow | Simultaneous injection of contrast and saline in increments of 5% | |
| Programmable Pressure Limit | From 50 psi to 300 psi in 1 psi increments (also displayable in kPa and kg/cm²) | |
| Programmable Delay | One second to 900 seconds in one second increments | |
| Pause | Maximum pause time of 20 minutes | |
| Injection Capabilities | Maximum of 6 phases per injection. Maximum of 10 injections per exam. | |
| Skip to Next Phase | Enables the user to stop the current phase of an injection and start the next phase | |
| Patency Check / Test Inject | Real time flow rate adjustment and multi-phase test injections | |
| Day Set* |
| |
| Patient Line |
| |
| Replacement Spikes* | Labeled for use with 1 bottle/bag of fluid. Replace the spike with every bottle change. | |
| Saline Tag | Attached to saline source used to deliver multiple single doses to multiple patients. Once the port of saline container is punctured, the Saline Tag should not be removed during the entire period of use. | |
*Replace the spike with every bottle change. Discard disposables in case of suspected fluid path contamination.
| Remote Connectivity | Available on the injector | |
| Barcode Reader | Available on the injector | |
| Automated Documentation* |
| |
| Processing Productivity* |
| |
| Scanner Interface* |
| |
| Protocols* | P3T® Bundle
| |
*May require additional software purchase
